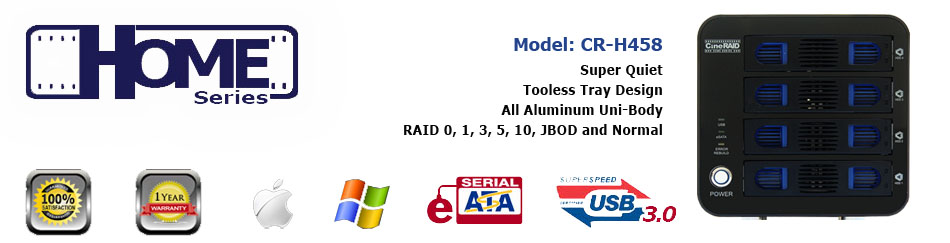

Model: CR-H458

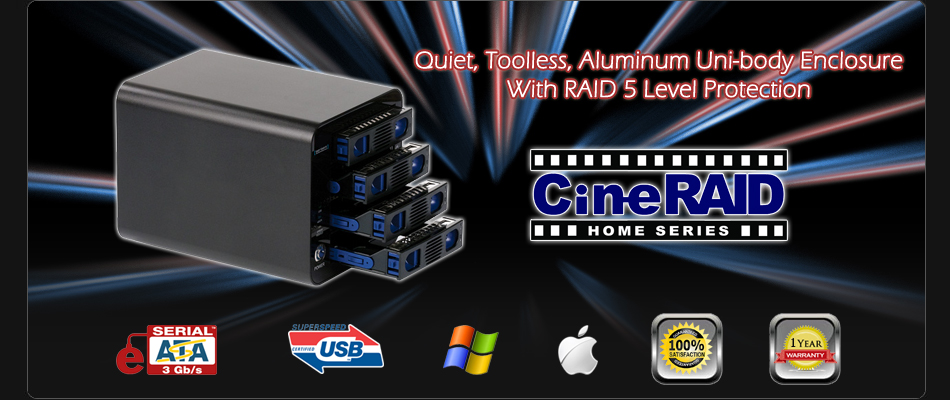

4-Bay USB 3.0 + eSATA Hardware RAID Desktop Storage

All Aluminum Uni-Body / Tool-Less Drive Tray / Super Quiet Fan


The super quiet CR-H458 features an internal hardware RAID controller, solid, all-aluminum enclosure with (4) hot-swappable hard disk drive modules with tool-less snap-in design for easy drive installation.  This compact enclosure provides high-performance, dual-interface, 4-bay SATA RAID solution for every type of digital asset. The internal RAID controller supports RAID 0 for maximum performance or RAID 5 for data protection, In addition to RAID 1, 3, 10 and JBOD. RAID configuration is accomplished through a simple dip-switch on the rear of the unit or through a GUI supported by Mac, Linux or PC. The CR-H458 small footprint and portability make it perfect for any mobile or desktop application.



  • High Speed, Low-Cost RAID featuring an internal RAID controller

  • USB 3.0 and eSATA interface

  • Supports Multi-Stream SD and compressed HD and 4K workflows

  • Supports RAID 0, 1, 3, 5, 10, JBOD and Individual Drive Configurations

  • Designed for 3.5" SATA HDD or 2.5" SSD Drives

  • Supports drives up to 10TB capacities in each drive bay

  • RAID level selection through a simple dip-switch or GUI

  • Auto-Rebuild in RAID 5 mode

  • Unique industrial design and compact aluminum housing

  • Mac® OS X, Linux and Windows® compatible

  • Standard 1 Year Limited Warranty









Striped Disk Array

(No Fault Tolerance)

Mirrored Disk Array

Parallel Transfer

with Parity

Distributed Parity for

Single Drive Fault Tolerance

Dual Distributed Parity for

Dual Drive Fault Tolerance

Click on Image to Enlarge

Host Connection
USB 3.0 / eSATA

Backwards Compatible to USB 2.0



Supported Drives:

SATA I, II or III  3.5" and 2.5" HDD


Max Capacity:

Supports up to 40TB (Raw Capacity)

(Using 4x 10TB SATA HDD's)

Height: 6.5 inches (165mm)
Width: 6.5 inches (165mm)
Depth: 9inches (228.5mm)

H458 Enclosure only: 6.5LBS or 2.4KG (excluding hard drive)
Full Package: 9LBS or 4.1KG


RAID Function:
Supports RAID 0, 1, 10, 3, 5
Automatic disk failure detection
Hot swappable disks


Power Supply:
Input: 110V - 240V
Output: +12V 6.0A (maximum)
*It may not work properly if power consumption is over the standard above

Operation Environment:
Temperature: 41°C - 95°F
Humidity: 20% - 80%

Package Content:
1X H458 Enclosure
1X eSATA Cable
1X USB 3.0 Cable
4X HDD Screw-less Trays
1X Power Adapter
1X Power Cord
1X User manual and Software CD


1 Year Limited Warranty

Support Line: 909-606-1111 x113





CR-H458 (Diskless) : $199

CR-H458-16TB* : $699

CR-H458-24TB* : $1199

CR-H458-32TB* : $1499

CR-H458-40TB* : $1999

*Raw capacity listed, Actual available capacity will vary depending on RAID selected, formatting, partitioning, operation system and other factors.
