Protected, Dual-Interface Storage Solutions

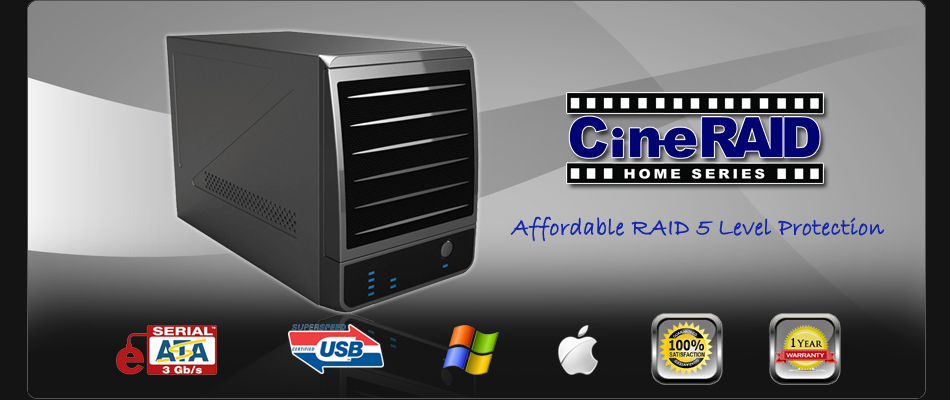

  This compact size Cineraid CR-H408 provides content creators a high-performance, dual-interface, 4-bay RAID solution for every type of digital asset. Equipped with 3Gbit eSATA and USB 3.0, the stylish CR-H408 features an internal RAID controller, solid steel enclosure with (4) hot-swappable hard disk drive modules.

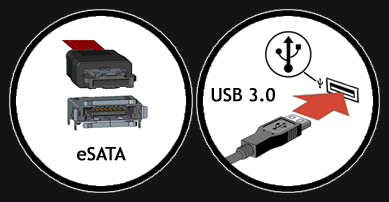

  The internal RAID controller supports RAID 0 for maximum performance or RAID 5 for data protection. RAID configuration is accomplished through a simple Mac, Linux or PC application. CR-H408 small footprint and portability make it perfect for laptop applications where high capacity and RAID protection is important. The high performance Dual interface features an eSATA, and USB 3.0 port.


- High-speed, low-cost RAID featuring an internal RAID controller with USB 3.0 and eSATA interface
- Supports multi-stream SD and compressed HD work flows
- Internal RAID controller support RAID 0, 1, 10, 3 and RAID 5
- Storage capacities up to 8TB*
- RAID level selection software for Mac, Linux and PC
- Auto-rebuild in RAID 5 mode
- Unique industrial design, compact steel enclosure
- Mac® OS X, Linux and Windows® compatible
- Standard One year factory warranty

Easy RAID Management
  The CineRAID Home H408 comes with intuitive GUI software that allows users to create, setup and monitor RAID status within seconds.  Whenever, there is a driver failure, users will be notified immediately.  The hot-swappable feature allows users to replace the indicated fail drive and begin the rebuild process swiftly with the least amount of user intervention.

Home and Office Applications
  This enclosure is suitable for home and small office environment where documents and media libraries often require on the fly backup and protection.  The friendly USB 3.0 and eSATA interface allows users to easily move data between stations.

Satisfaction is our first priority
  Our 30 days money back guarantee gives our customers the satisfaction and peace of mind in the rare case that our products do not meet your satisfaction. Each unit is built with our commitment on delivering a product that exceeds our customer’s satisfaction. We stand by our customers with a team of experienced storage professionals committed to find and solve any issues if needed.




- USB 3.0                                       (Backwards Compatible to USB 2.0)

- Up to 12TB                                        (Using 4x 3TB SATA Drives)

- Height: 7 inches (178mm)
- Width: 5.3 inches (134mm)
- Depth: 10.1inches (256mm)

- H408 Enclosure: 6.5LBS or 2.4KG (excluding hard drive)
- Full Package: 9LBS or 4.1KG

RAID Function:
- Supports RAID 0, 1, 10, 3, 5
- Automatic disk failure detection
- Hot swappable disks

Supporting OS for GUI:
- Windows 7 / Windows Vista / XP Home Edition SP-1, Professional SP-1 / Windows 2000 Professional SP-3 / Windows ME / Windows 98SE or later versions. (*1,2,)
- Mac OS X 10.3 or later (recommended 10.3.9 or later)
- Linux 32-bit / 64-bit
*1. Not applicable to use on volume more than 137GB or 137GB in "combine mode" in windows ME / 98SE
*2. Windows 98 first edition may not work properly.

Power Supply Specifications:
- Input: 100V - 240V
- Output: +5V 4.0A / +12V 6.0A (maximum)
*It may not work properly if power consumption is over the standard above

Operation Environment:
- Temperature: 41°C - 95°F
- Humidity: 20% - 80%

Package Content:
- 1X H408 Enclosure
- 1X eSATA Cable
- 1X USB 3.0 Cable
- 5X HDD Holder
- 20X HDD Screws
- 1X Power Cable
- 1X User manual

- 1 year factory warranty

Quick Start Guide

- Manual

- Software CD

Model Description MSRP
CR-H408 4 Bay RAID Enclosure $199.99
