Protected, Triple-Interface
Storage Solutions |

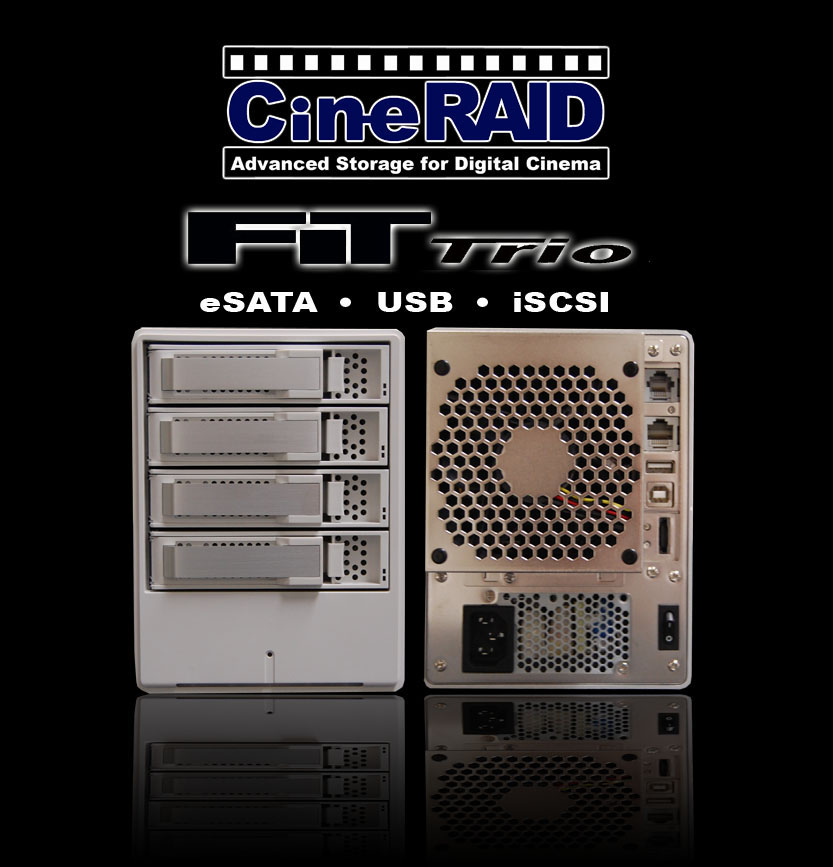

The CineRAID FiT TRIO RAID box offers
a truly innovative eSATA(3.0Gbps)/USB2.0
solution for use with your PC and Mac
workstation. Designed and leveraged with
high performance solution, this RAID box
delivers high-capacity performance at
the best of cost/performance value. With
RAID box technology, it allows one HDD
failure without impact on the existing
data and failed drive rebuild is
transparent to the host.
- 400MHz storage I/O processor
- 128MB on-board DDR2-400 SDRAM
- Unleash the power of 3.0Gbps and NCQ
on the eSATA host port
- NVRAM for RAID configuration &
transaction log
- Write-through or write-back cache
support
- Redundant flash image for controller
availability
- RAID level 0, 1, 10, 3, 5, Single Disk
or JBOD
- Multiple RAID selection
- Up to 16 volumes per RAID subsystem
(port multiplier SATA host: 4 volumes,
without port multiplier SATA
- host: 1 volume, iSCSI/AoE host: 8
volumes and USB2.0 host: 8 volumes)
- Online array roaming
- Offline RAID set
- Online RAID level/stripe size
migration
- Online capacity expansion and RAID
level migration simultaneously
- Online dynamic volume set capacity
expansion
- Instant availability and background
initialization
- Automatic insertion/removal detection
and rebuild
- Greater than two TB per volume set
Support SMART, NCQ, and OOB staggered
spin-up capable drives
