Protected, Quad-Interface
Storage Solutions |

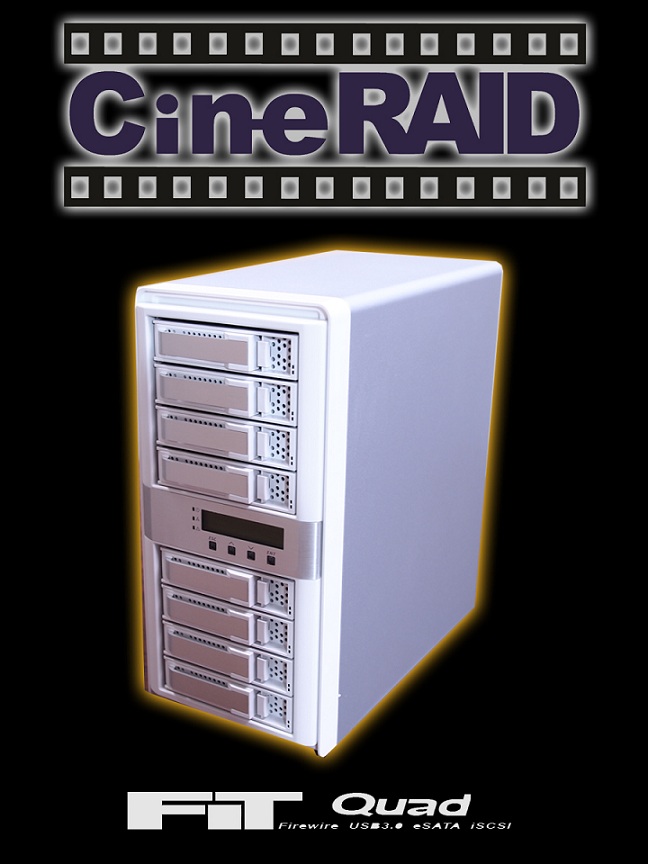

The CineRAID FiT QUAD is the most
complete 8-bay 3.0 Gbps SATA drive
subsystem with RAID control
capabilities. The box unleashes a truly
innovative multiple hosts (with 3.0Gbps
eSATA, USB3.0, FireWire 800, iSCSI/AoE
and USB2.0) solution for both PC and
Mac. The eSATA port delivers in excess
of 220 MB per second sustained RAID 0
reads and over 210 MB/sec RAID 0
sequential writes. High transfer rates
is well suited for audio/video
application especially the rapidly
growing demand from the Mac Video
Editing markets. The Intelligent cooling
continuously adapts to environmental
conditions by automatically controlling
the speed of the cooling fans. This
super silent design, optimizing balance
between noise reduction and necessary
cooling, help the resellers to offer the
cost effective storage solution.
- 400MHz storage I/O processor
- NVRAM for events log & transaction log
- 128MB on-board cache memory
- Write-through or write-back cache
support
- Redundant flash image for subsystem
availability
- RAID level 0, 1, 10, 1E, 3, 5, 6,
Single Disk or JBOD
- Multiple RAID selection
- Up to 16 volumes per RAID subsystem
(port multiplier SATA Host: 8 volumes,
USB3.0 Host: 8 volumes, FireWire 800
Host: 2 volumes, iSCSI/AoE Host: 16
volumes and USB2.0 Host: 16 volumes)
- Online array roaming
- Offline RAID set
- Online RAID level/stripe size
migration
- Online capacity expansion and RAID
level migration simultaneously
- Online dynamic volume set capacity
expansion
- Instant availability and background
initialization
- Automatic insertion/removal detection
and rebuild
- Greater than 2TB per volume set
- Support SMART, NCQ, and OOB staggered
spin-up capable drives
