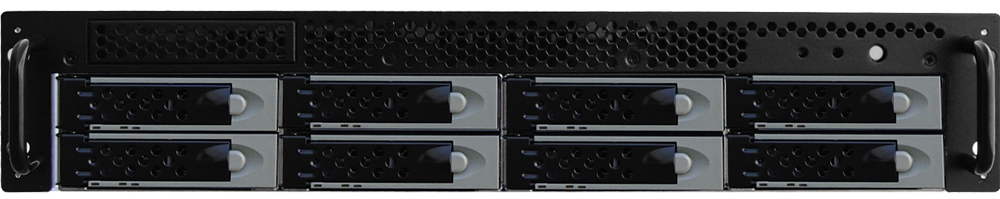

8 BAY 2U Rackmount Enclosure
Black Series |
|
|
|
 |
|
The CineRAID EditPRO is
designed with Areca field
proven RAID Technology,
offering the highest
enterprise
level of data protection
and performance, keeping your
workflow uninterrupted
when it matters the
most. If a drive fails
in RAID 5 protected
mode, you can sustain a
failed drive without
losing any data and
allows you to continue
to operate. In RAID 6,
it can sustain up to 2
concurrent drive
failures without losing
your important data. Our intuitive GUI
(Graphical User Inerface)
includes web browser support
for ease of use which allows user to
identify the status of
each individual volumes
as well as drives and
make desired changes. (S.M.A.R.T
supported)
To be notified in
real-time when drive
failures occurred, you
can setup email alerts
to your smart phone
which will send you
email notification
whenever there are
changes in your RAID
volume status.
|
|
|
 |
 |
|
|
Click on Image to
Enlarge |
|
|
|
Model |
Description |
MSRP |
|
CR-R08B |
8 Bay 2U Rackmount Only |
$899* |
|
CR-R08BX |
8 Bay 2U Rackmount with PCIe 6G RAID Card |
$1549* |
|
CR-R08BX-8TB |
8 Bay 2U Rackmount with PCIe 6G RAID Card - 8x 1TB
Drives |
Email /
Call For Quote |
|
CR-R08BX-16TB |
8 Bay 2U Rackmount with PCIe 6G RAID Card - 8x 2TB
Drives |
Email /
Call For Quote |
|
CR-R08BX-24TB |
8 Bay 2U Rackmount with PCIe 6G RAID Card - 8x 3TB
Drives |
Email /
Call For Quote |
|
|
*Pricing Based on 1 Year
Warranty. An Optional 3 Year Warranty
with Advance Replacement is also
Available.
|
|
 |
6G
TECHNOLOGY |
|
By using a complete 6Gb/s SAS/SATA
infrastructure, it enables greater
reliability and throughput to
deliver the ultimate solution using
the latest high performance
enterprise 6G SAS/SATA drives. |
 |
 |
COOLING |
|
Each
whole enclosure is designed for
maximum airflow and proper cooling
in mind. The front ventilation holes
draw cool air in, while exhausting
warm air out the back. This high
cooling air flow system is critical
to achieve maximum performance and
reliability of the components.
Built in temperature monitors are
constantly detecting for any
un-healthy rise in heat or fan
failures, and will alert you of the
problem.
|
|
|
|
 |
QUIET
FAN DESIGN |
|
We use quiet internal
ball bearing fans which
are designed specially
for maximum air flow
with minimal sound. Perfect for low
noise studio environments. Fan speed
can also be monitored through the
RAID controller GUI and will
immediately alert if any fan
failures arise.
|
|
|
|
 |
POWER SUPPLY |
|
The EditPRO units utilize an 80plus
Active PFC power supply exceeding
specifications of 80% or greater
energy efficiency. The active PFC
(Power Factor Correction) which
allows for power distribution to
operate at its maximum efficiency by automatically correcting the
power factor, which ultimately leads
to an improved stability and more
reliable power supply.
|
|
|
 |
SECURE CONNECTION |
|
Included in all our enclosures are
SFF-8088 Mini SAS cables for a safe
and secure connection between the
RAID card and enclosure. The fixed
latch cable design helps provide a
stable connection and protection
against accidental interruptions
during your workflow. This cable
will not disconnect unless you do
so. |
|
|
 |
CASE SPECIFICATIONS |
| |
-
Supports 8 independent 6Gb/s
SATA or SAS HDD's (Backwards
Compatible to 3Gb/s drives)
-
Maximum 32TB of raw storage
capacity (Using 8x 4TB drives)
-
2x MiniSAS (SFF-8088)
External Host Connections to RAID Controller
-
Dimensions:
3.5"(H) x 19"(W) x 16"(D)
-
Weight:
20lbs (without drives)
-
200W Active PFC - 80 Plus Rated
Power Supply w/
Quiet Ball Bearing Fan (x1)
-
LED and
Audible Alert - Fan
Failure/Over Temperature
-
2x Ball Bearing Fans / 2100 RPM
/ 41 CFM / 26 dBA (Noise Level)
Environmental Requirements:
-
Operation Temprature: 0~60
-
Storage Temperature: -20~70
-
Operation Humidity: 5%~85%,
non-condensing
-
Storage Humidity: 5%~95%
|
|
|
 |
RAID CONTROLLER
SPECIFICATIONS
A PCIe Dual Port RAID controller
is only included with the CR-R08BX
series |
| |
Features:
-
PCIe (x8) 6G SATA/SAS RAID
Controller (Dual External Ports)
-
512MB DDR2 ECC Cache
-
Supports RAID 0,1,1E,3,5,6,10
and JBOD
-
Multiple Adapter Support
-
Multiple RAID Selection and
Volume
-
Array Roaming
-
Online RAID level/stripe size
migration
-
Online RAID capacity expansion
-
Instant availability and
background initialization
-
Auto drive insertion/removal
detection and rebuild
-
Greater than 2TB support per
volume
-
Supports S.M.A.R.T., NCQ and OOB
staggered spin up
-
Support (MAID) Massive Array of
Idle Disks (Spin down of disk
when not in use)
Management & Monitor:
-
Browser-based management utility
(GUI)
-
Supports command line interface
(CLI)
-
Hot
Key boot up BIOS RAID Manager
(Windows only)
-
SMTP support for email
notification
-
SNMP support for remote
notification
-
RAID status indication through HDD activity/fault
LED with audible alarm
OS Support
-
Windows 2000, XP, Server 2003, Vista,
Window 7
-
Mac OS X Tiger 10.4.x , Leopard
10.5.X, Snow Leopard 10.6.x and
Lion 10.7.x
-
Linux
-
FreeBSD
-
VMware
-
Solaris 10/11 x86/x86_64
|
|
|
|
|
Hardware Compatibility List |
|
SATA Hard
Drives |
|
Seagate
Constellation ES |
3 TB |
ST33000650NS |
|
Seagate
Constellation ES |
2 TB |
ST32000644NS, ST2000NM0011 |
|
Seagate
Constellation ES |
1 TB |
ST1000NM0011 |
|
Seagate
Constellation ES |
500 GB |
ST500NM0011 |
|
Hitachi
Ultrastar 7K3000 |
3 TB |
HUA723030ALA640, HUA723030ALA641 |
|
Hitachi
Ultrastar 7K3000 |
2 TB |
HUA723020ALA640, HUA723020ALA641 |
|
WD RE4 |
2 TB |
WD2003FYYS |
|
WD RE4 |
1.5 TB |
WD1503FYYS |
|
WD RE4 |
1 TB |
WD1003FBYX |
|
WD RE4 |
500GB |
WD5003ABYX |
|
WD
VelociRaptor |
600 GB |
WD6000BLHX, WD6000HLHX |
|
WD
VelociRaptor |
450 GB |
WD4500NLHX, WD4500HLHX |
|
WD
VelociRaptor |
300 GB |
WD3000BLHX , WD3000HLHX |
|
WD
VelociRaptor |
150 GB |
WD1500BLHX, WD1500HLHX |
|
SAS
Hard Drives |
|
Seagate |
3 TB |
ST33000650SS |
|
Seagate |
2 TB |
ST32000444SS, ST2000NM0001 |
|
Seagate |
1 TB |
ST31000424SS, ST1000NM0001 |
|
Seagate |
500 GB |
ST500NM0001 |
|
Hitachi
Ultrastar 7K3000 |
3 TB |
HUS723030ALS640, HUS723030ALA641 |
|
Hitachi
Ultrastar 7K3000 |
2 TB |
HUS723020ALS640, HUS723020ALS641 |
|
RAID Controllers |
|
Areca |
ARC-1221X, 1222X, 1223-8x |
|
LSI |
MegaRAID
SAS 9280-8e, 9285-8e |
|
ATTO |
ExpressSAS R680 |
|
 |
|
|
|
