16 Bay
8Gb Fiber Channel - 3U Rackmount |
|
Model: CR-R616FS -
Single Controller
Model: CR-R616FD -
Dual Controller |
 |
|
|
The new CineRAID 600
Series CR-R616F is a
16 bay RAID storage
solution with Quad 8G Fibre Channel
(FC) host storage
solution with built in
proven RAID system
combining 8Gb/s FC host
connectivity and 6Gb/s
SAS/SATA drive support.
Proven high-throughput
performance for real
world media applications
and demanding workflows.

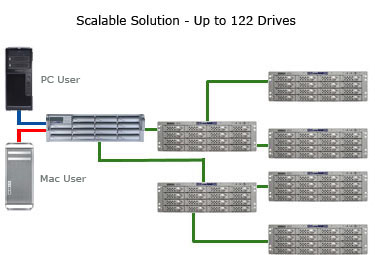

When combined with the
EditPRO X Expander, the
616F can scale to 122
drives and still only
use a single management
interface that is shared
between all the units.
|
|
|
 |
 |
|
Click on Image to
Enlarge |
|
|
|
|
|
|

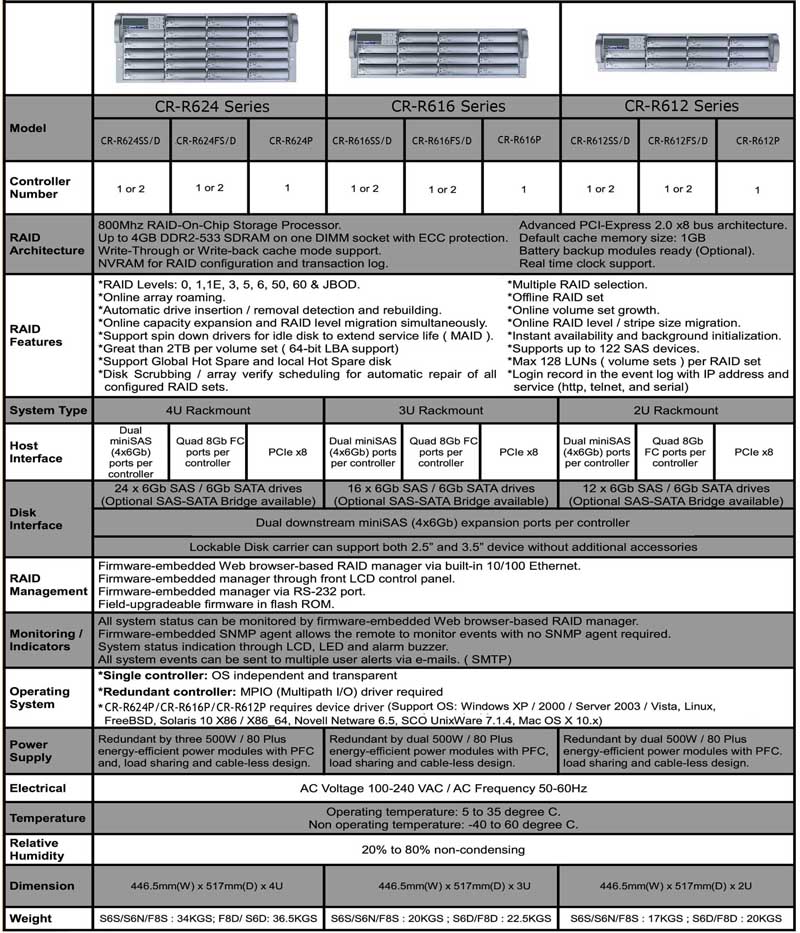

600 Series
Comparison Chart
Click on Image to
Enlarge
Click on Image to
Enlarge
Click on Image to
Enlarge |
|
|
|
Price List |
|
Model |
Description |
MSRP |
|
CR-R616FS |
16Bay 3U Rack Quad 8G Fibre-to-SAS RAID Unit
(Single Controller) |
$ 7999 |
|
CR-R616FS-16TB |
16Bay 3U Rack Quad 8G Fibre-to-SAS RAID Unit
(Single Controller) w/ 16x 1TB Enterprise
Hard Drives |
$ 10,499 |
|
CR-R616FS-32TB |
16Bay 3U Rack Quad 8G Fibre-to-SAS RAID Unit
(Single Controller) w/ 16x 2TB Enterprise
Hard Drives |
$ 11,999 |
|
CR-R616FS-48TB |
16Bay 3U Rack Quad 8G Fibre-to-SAS RAID Unit
(Single Controller) w/ 16x 3TB Enterprise
Hard Drives |
$ 14,499 |
|
CR-R616FS-64TB |
16Bay 3U Rack Quad 8G Fibre-to-SAS RAID Unit
(Single Controller) w/ 16x 4TB Enterprise
Hard Drives |
$ 15,499 |
|
CR-R616FD |
16Bay 3U Rack Quad 8G Fibre-to-SAS RAID Unit
(Dual Controller) |
$ 11,499 |
|
CR-R616FS-16TB |
16Bay 3U Rack Quad 8G Fibre-to-SAS RAID Unit
(Dual Controller) w/ 16x 1TB Enterprise
Hard Drives |
$ 13,999 |
|
CR-R616FD-32TB |
16Bay 3U Rack Quad 8G Fibre-to-SAS RAID Unit
(Dual Controller) w/ 16x 2TB Enterprise Hard
Drives |
$ 15,499 |
|
CR-R616FD-48TB |
16Bay 3U Rack Quad 8G Fibre-to-SAS RAID Unit
(Dual Controller) w/ 16x 3TB Enterprise Hard
Drives |
$ 16,999 |
|
CR-R616FD-64TB |
16Bay 3U Rack Quad 8G Fibre-to-SAS RAID Unit
(Dual Controller) w/ 16x 4TB Enterprise Hard
Drives |
$ 18,999 |
3 Year Warranty
Included / 5 Year HDD Warranty |
|
|
|
Hard
Drive Compatibility List |
|
SATA
Hard Drives |
|
Seagate
Constellation ES |
500 GB |
ST500NM0011 |
|
Seagate
Constellation ES |
1 TB |
ST1000NM0011 |
|
Seagate
Constellation ES |
2 TB |
ST32000644NS, ST2000NM0011 |
|
Seagate
Constellation ES |
3 TB |
ST33000650NS |
|
WD RE
6G SATA |
1TB |
WD1003FBYX |
|
WD RE
6G SATA |
2TB |
WD2003FYYS, WD2000FYYZ |
|
WD RE
6G SATA |
3TB |
WD3000FYYZ |
|
WD RE
6G SATA |
4TB |
WD4000FYYZ |
|
WD RE4 |
500GB |
WD5003ABYX |
|
WD RE4 |
1 TB |
WD1003FBYX |
|
WD RE4 |
1.5 TB |
WD1503FYYS |
|
WD RE4 |
2 TB |
WD2003FYYS |
|
WD
VelociRaptor |
150 GB |
WD1500BLHX, WD1500HLHX |
|
WD
VelociRaptor |
300 GB |
WD3000BLHX , WD3000HLHX |
|
WD
VelociRaptor |
450 GB |
WD4500NLHX, WD4500HLHX |
|
WD
VelociRaptor |
600 GB |
WD6000BLHX, WD6000HLHX |
|
Hitachi
Ultrastar 7K3000 |
2 TB |
HUA723020ALA640, HUA723020ALA641 |
|
Hitachi
Ultrastar 7K3000 |
3 TB |
HUA723030ALA640, HUA723030ALA641 |
|
SAS
Hard Drives |
|
WD RE
6Gn SAS |
1TB |
WD1001FYYG |
|
WD RE
6G SAS |
2TB |
WD2001FYYG |
|
WD RE
6G SAS |
3TB |
WD3001FYYG |
|
WD RE
6G SAS |
4TB |
WD4001FYYG |
|
Seagate |
500 GB |
ST500NM0001 |
|
Seagate |
1 TB |
ST31000424SS, ST1000NM0001 |
|
Seagate |
2 TB |
ST32000444SS, ST2000NM0001 |
|
Seagate |
3 TB |
ST33000650SS |
|
Hitachi
Ultrastar 7K3000 |
2 TB |
HUS723020ALS640, HUS723020ALS641 |
|
Hitachi
Ultrastar 7K3000 |
3 TB |
HUS723030ALS640, HUS723030ALA641 |
|
Solid
State Drives (SSD) |
|
Pretec |
256MB |
P6000 -
SATP6256G-CMM |
|
Pretec |
128MB |
P6000 -
SATP6128G-CMM |
|
Host Adapters |
|
ATTO |
Celerity
FC-84EN / FC82EN / FC81EN |
|
|
|
|
|
