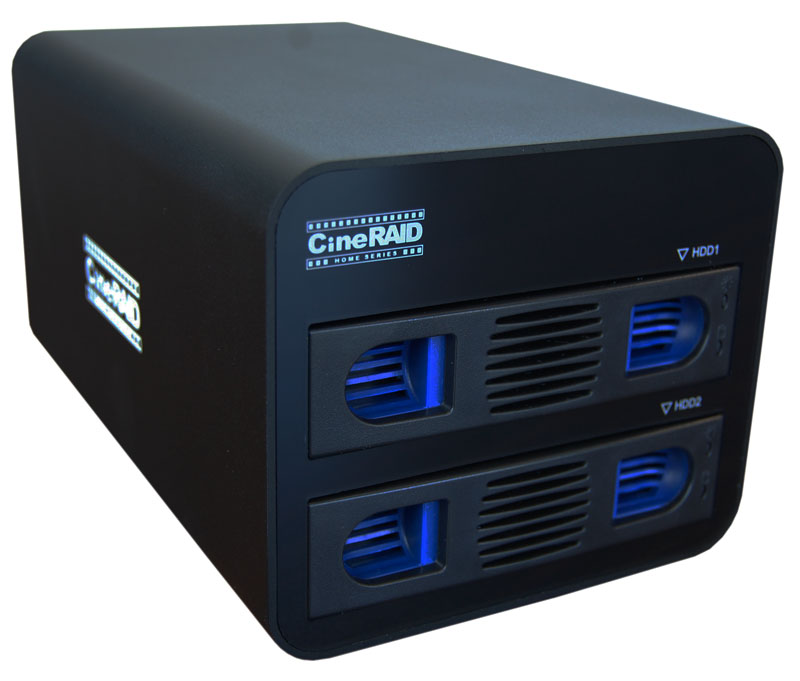

Model: CR-252

2 BAY USB 3.0 RAID/JBOD Enclosure


Click on Image to Enlarge
Model Description MSRP
CR-H252 Dual 3.5 Bay Quiet USB 3.0 RAID Enclosure (No Drives) $ 99
CR-NH252-2TB 2TB Dual 3.5 Bay Quiet USB 3.0 RAID Enclosure $ 349
CR-NH252-4TB 4TB Dual 3.5 Bay Quiet USB 3.0 RAID Enclosure $ 399
CR-NH252-6TB 6TB Dual 3.5 Bay Quiet USB 3.0 RAID Enclosure $ 499

The CR-H252 is a Dual Drive Bay solution featuring an internal hardware RAID controller, solid all-aluminum enclosure with (2) hot-swappable tool-less drive trays, making installation a snap. Developed for professionals looking for high speed and large capacities from a storage and backup device with a small foot print for easy transport. Offering super speed USB 3.0 for easy universal connectivity to a Mac or PC. 3 RAID modes makes it easily customizable for speed and protection depending on individual needs.



                      Highlights

- High-speed, low-cost 2 bay USB 3.0 Solution

- SuperSpeed USB 3.0 (Backwards Compatible to USB 2.0/1.0)
- Supports SD and compressed HD work flows
- Built-In RAID -  support RAID 0, 1, JBOD and Normal Mode
- Storage capacities up to 8TB (using 2x 4TB drives - raw capacity)

- Tool-less Tray design makes swapping drives a snap

- Hot-Swap Drive bays with Auto-rebuild
                                   - Industrial aluminum design
                                   - Mac® OS X, Linux and Windows® compatible
                                   - Standard One year factory warranty


Easy RAID Setup
The CineRAID Home CR-H252 features three RAID modes with an easy dip-switch RAID setup for customizable speed and protection levels. RAID 0 offers large capacity and highest speeds by stripping both drives together, but no protection. RAID 1 offers full data protection by mirroring both hot-swappable disks for non stop data access or to use a mirrored drive as a backup. JBOD offers one large capacity of both drives. Normal mode is also an option for individual drive detection.

Home and Office
This enclosure is suitable for every home or office professional dealing with data archiving, backup and audio/video post-production with SD and HD environments.



Versatile & Robust

Designed with a sturdy aluminum body, the CR-H252 is definitely

built to last. It's compact  and space saving abilities make it an ideal solution for any work environment and easily stackable for multiple storage applications. The USB 3.0 allows users to effortlessly move data between stations.





Quiet Cooling

The all aluminum body and ultra quiet rear fan efficiently draws heat away from internal drives, keeping them cool and safe at all times.



Satisfaction
Our 30 days money back guarantee gives our customers
the satisfaction and peace of mind in the rare case that our products do not meet your satisfaction. Each unit is built with our commitment on delivering a product that exceeds our customer’s satisfaction. We stand by our customers with a team of experienced storage professionals committed to find and solve any issues if needed.





Downloads:



  Specifications:

Interface:
- USB 3.0

(Backwards Compatible to USB 2.0)

Capacity: Up to 8 TB

(2x 4TB SATA HDD or SSD)

Dimensions:
- Height: 6.5 inches (115mm)
- Width: 5.25 inches (130mm)
- Depth: 8.5 inches (208mm)

Weight:
- H252 Enclosure: 3.3 lbs

  (excluding hard drives)
- Full Package: 4.5 lbs

RAID Function:
- Supports RAID 0, 1, JBOD
- Automatic disk failure detection
- Hot swappable disks

Supporting OS:
- Windows 7 / Windows Vista / XP Home Edition SP-1, Professional SP-1 / Windows 2000 Professional SP-3 / Windows 98SE or later versions. (*1,2)
- Mac OS X 10.3 or later                         (recommended 10.3.9 or later)
- Linux 32-bit / 64-bit
*1. Not applicable to use on volume more than 137GB or 137GB in "combine mode" in windows ME / 98SE
*2. Windows 98 first edition may not work properly.


Power Supply Specifications:
- Input: 110V - 240V
- Output: +12V 6.0A (maximum)
*It may not work properly if power consumption is over the standard above

Operation Environment:
- Temperature: 41°C - 95°F
- Humidity: 20% - 80%

Package Contents:
- 1X H252 Enclosure
- 1X USB 3.0 Cable
- 2X HDD Screw-less Trays
- 1X Power Adapter
- 1X Power Cord
- 1X User manual and Software CD

- 8x HDD Screws (For 2.5 HDD Application)

Warranty:
- 1 Year Warranty



MSRP:
  $99 (No Drives)



C O M P A T I B L E   H A R D   D R I V E    L I S T

SATA Hard Drives

Seagate Enterprise ES.3 4TB ST4000NM0033
Seagate Constellation 3 TB ST3000NM0033 / ST33000650NS
Seagate Constellation 2 TB ST2000NM0033 / ST32000644NS / ST2000NM0011
Seagate Constellation 1 TB ST1000NM0033 / ST1000NM0023 / ST1000NM0011
Seagate Constellation 500 GB ST500NM0011

Hitachi Ultrastar 7K4000 4 TB HUS724040ALE640 / HUS724040ALA640
Hitachi Ultrastar 7K4000 3 TB HUS724030ALE640 / HUS724030ALA640
Hitachi Ultrastar 7K4000 2 TB HUS724020ALE640 / HUS724020ALA640
Hitachi Ultrastar 7K3000 3 TB HUA723030ALA640 / HUA723030ALA641
Hitachi Ultrastar 7K3000 2 TB HUA723020ALA640 / HUA723020ALA641

WD RE 4TB WD4000FYYZ
WD RE 3TB WD3000FYYZ
WD RE 2TB WD2000FYYZ / WD2003FYYS
WD RE 1TB WD1003FBYX
WD RE 500 GB WD5003ABYX
WD RE 250 GB WD2503ABYX
WD RE4 2 TB WD2003FYYS
WD RE4 1.5 TB WD1503FYYS
WD RE4 1 TB WD1003FBYX
WD RE4 500GB WD5003ABYX
WD Red 3TB WD30EFRX
WD Red 2TB WD20EFRX
WD Red 1TB WD10EFRX
WD VelociRaptor 1TB WD1000DHTZ
WD VelociRaptor 600 GB WD6000BLHX / WD6000HLHX
WD VelociRaptor 500 GB WD5000HHTZ
WD VelociRaptor 450 GB WD4500NLHX / WD4500HLHX
WD VelociRaptor 300 GB WD3000BLHX / WD3000HLHX
WD VelociRaptor 250 GB WD2500HHTZ
WD VelociRaptor 150 GB WD1500BLHX / WD1500HLHX
