Storage:
- 16 independent 3Gb/s SATA or SAS HDD
- Maximum of 32TB of raw storage capacity
Controller:
- SATA/SAS RAID Controller using the Intel
IOP348 1200Mhz IO Processor
- 512MB DDR2 ECC Cache (upgradeable to 4GB
on selected models)
- Supports RAID 0, 1, 1E, 3, 5, 6, 10, 30,
50, 60 and JBOD
- Multiple adapter support
- Multiple RAID selection and volume
- Array Roaming
- Online RAID level/stripe size migration
- Online RAID capacity expansion
- Instant availability and background
initialization
- Auto drive insertion/removal detection and
rebuild
- Greater than 2TB support per volume
- Supports S.M.A.R.T, NCQ and OOB staggered
spin up
- Support spin down (MAID) of drives RAID
Management & Monitor Indicators:
- Browser-based management utility (GUI)
- Supports command line interface (CLI)
- Hot Key boot up BIOS RAID Manager (Windows
only)
- SMTP support for email notification
- SNMP support for remote notification
- RAID status indication through HDD
activity/fault LED with audible alarm
- Enclosure temperature / fan / power supply
alerts by LED and audible alarm
Fans:
- 3x 120mm fluid dynamic bearing fans
- Rotational Speed: 1200rpm
- Maximum Airflow: 49cfm
- Noise level: 20 dba |
|
Size & Weight:
- T12: 19.5''(H) x 7''(W) x 17''(D), 25lb
without drives
- R16: 5.25''(H) x 19''(W) x 25.5''(D), 25lb
without drives
Power Supply:
- T12: 500w Active PFC, 50/60Hz, 100-240v
- R16: Dual redundant 460w, 47-63Hz,
100-240v
Environmental Requirements:
- Operation Temperature: 0~60
- Storage Temperature: -20~70
- Operation Humidity: 5%~85%, non-condensing
- Storage Humidity: 5%~95%
System Requirements:
- Apple Mac Pro with 1 available PCIe x8
slot
- Apple Power Mac G5 with 1 available PCI-X
slot.
- Windows-based compatible PC with one PCI-e
X8 or PCI-X
OS Support:
- Windows 2000, XP, Server 2003, Vista
- Mac OS X 10.4 and above
- Linux (RedHat, SuSE, etc)
- FreeBSD - Solaris 10X86, 10x86_64
- UnixWare 7.1.X
- Novell Netware 6.5
In the Box:

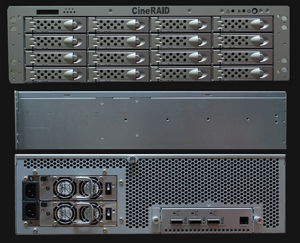

- 1x R16E CineRAID EditPRO RS Fibre
- 16x Drive Trays - 16x 1TB HDD (upgradeable
to higher capacity SATA or SAS drives)
- 1x ATTO Fibre HBA
- 1x External MiniSAS cable (SFF-8088)
- 1x Power Cord
- 1x Driver CD & Manual
 |
